Cyflwyniad: This unit machine is special design for packaging pellets tea into small pillow bag with tiny weight .With function of tea pellets feeding,weighing, Automatic bag forming sealing and output .The main machine has function of bag counting and date coding .

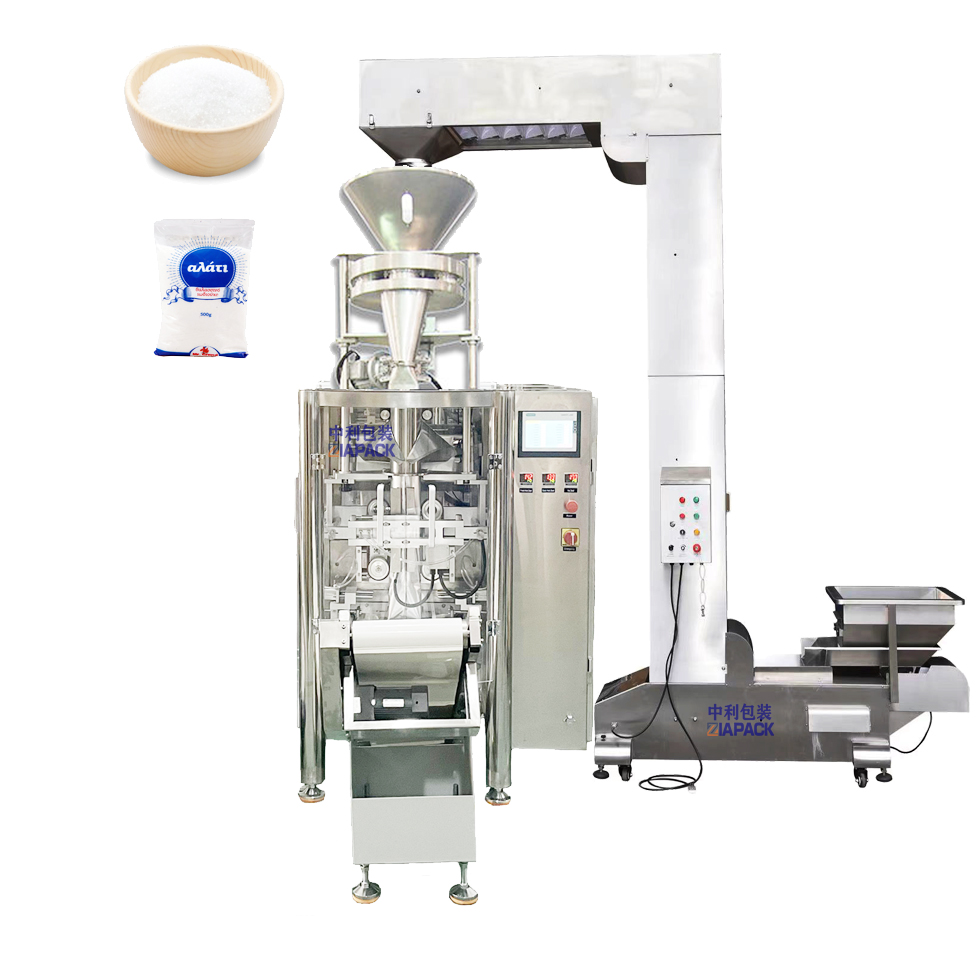

ZL320 Vertical bag forming filling sealing packaging machine
The whole machine frame made by Stainless Steel 304, All Material contact part made by SUS304 .This machine equipped with bag-making, cutting, code printing , bag counting ,bag sealing and bag dropping .According client requirement can add bag pressing ,make gusseted bag ,making flat bottom bag etc.Adopt SIEMENS PLC and Touch Screen，Panasonic servo motor, Japanese Photo Sensor , SMC electromagnetic valve . The machine performance is stable .It is a best choice for improve the automation of modern factory .
Paramedrau Technegol:
Weighing Range:10-500gram
Packaging Speed:30-60bags/min
Bag size: (80-220)*(60-150)mm(L*W)
Film roller width :320mm
gofyniad aer: 0.6Mpa 0.65m³/min
outer diameter: 300mm
diamedr mewnol: 75mm
inner weight: 300kg
Power source: 3.5kW 380V±10% 50Hz
Prif Nodweddion a Nodweddion

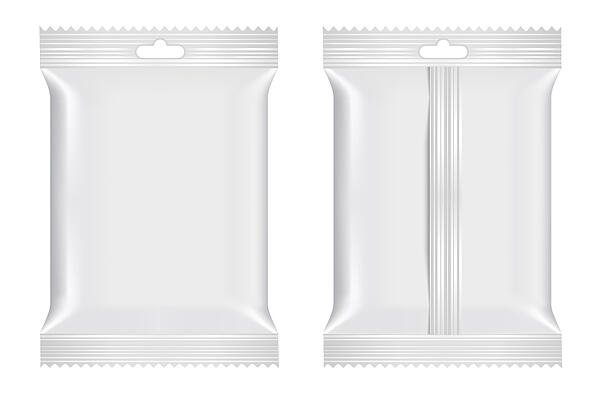

Amrywiaeth eang o godenni: bag gobennydd, Yn gallu gwneud bag gusseted, bag gwaelod gwastad trwy ddyfais newid
Cyflymder uchel: Mwy na 20-60 bag / mun
Hawdd i'w weithredu: Rheolydd PLC a sgrin gyffwrdd lliw, arwydd o fai ar y sgrin gyffwrdd.
Hawdd i'w addasu: dim ond tua 10 munud i newid gwahanol blychau.
Rheoli amlder: gellir addasu cyflymder trwy drosi amlder o fewn yr ystod.
Awtomeiddio Uchel: proses pwyso a phacio heb griw, peiriant larwm yn awtomatig pan fethiant.
Diogelwch a Hylendid
Dim ffilm, bydd y peiriant yn larwm.
Larwm peiriant a stopio pan fydd y pwysedd aer annigonol.
Gwarchodwyr diogelwch gyda switshis diogelwch, larwm peiriant a stopio pan fydd y gwarchodwyr diogelwch yn cael eu hagor.
Adeiladwaith hylan, mabwysiadir y rhannau cyswllt cynnyrch sus304 dur di-staen
