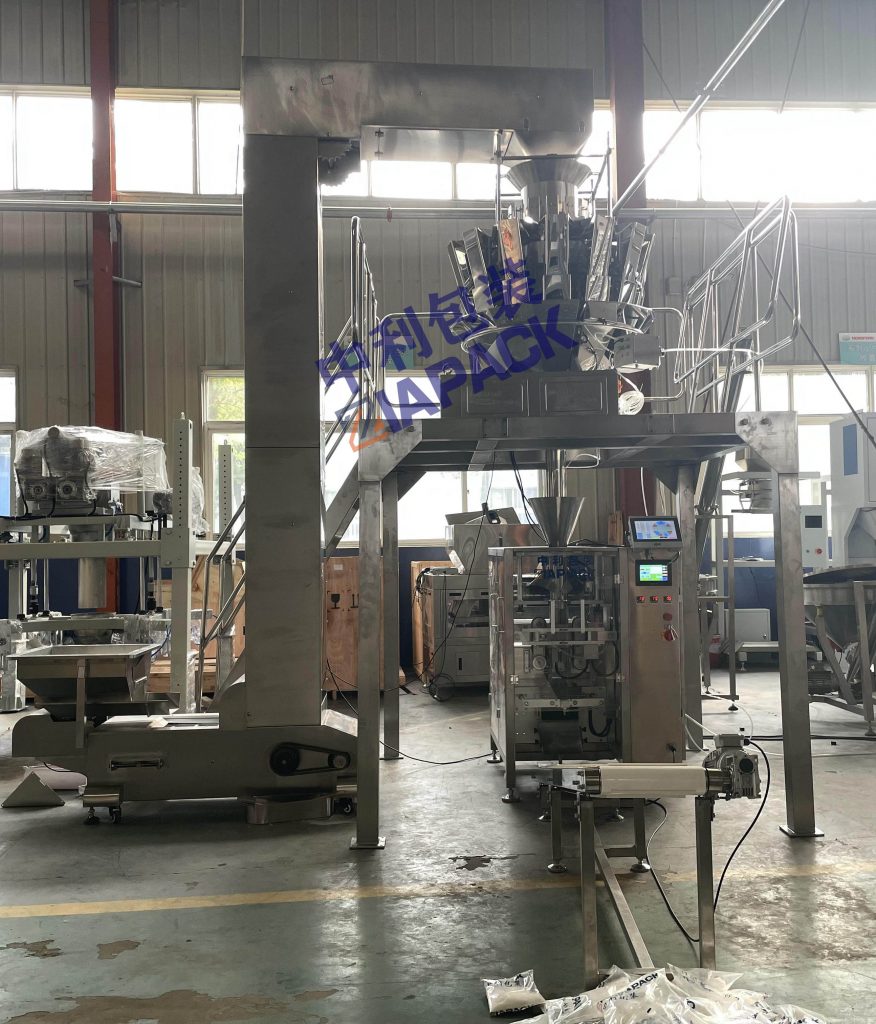

ZL520 vertical bag forming filling sealing Packaging machine
Y peiriant cyfan a wnaed gan Dur Di-staen 304, Mae'r peiriant hwn yn meddu ar wneud bagiau, torri, argraffu cod, ac ati Siemens PLC a Sgrin Gyffwrdd, modur servo Panasonic, Synhwyrydd Llun Japaneaidd, falf Awyr Corea, ac ati.
Mabwysiadodd y system tynnu ffilm gyrru modur servo gan wneud cyflymder yn gyflymach.
Paramedrau Technegol:
Ystod Pwyso: 30-500g
Cyflymder Pecynnu: 20-40 bag / mun
Maint bag: (80-360) * (100-260) mm (L * W)
Gofyniad aer cywasgedig: 0.6Mpa 0.65m³/min
Diamedr allanol rîl: 400mm
Diamedr mewnol craidd: 75mm
Pwysau peiriant: 600kg
Ffynhonnell pŵer: 4.5kW 380V ± 10% 50Hz

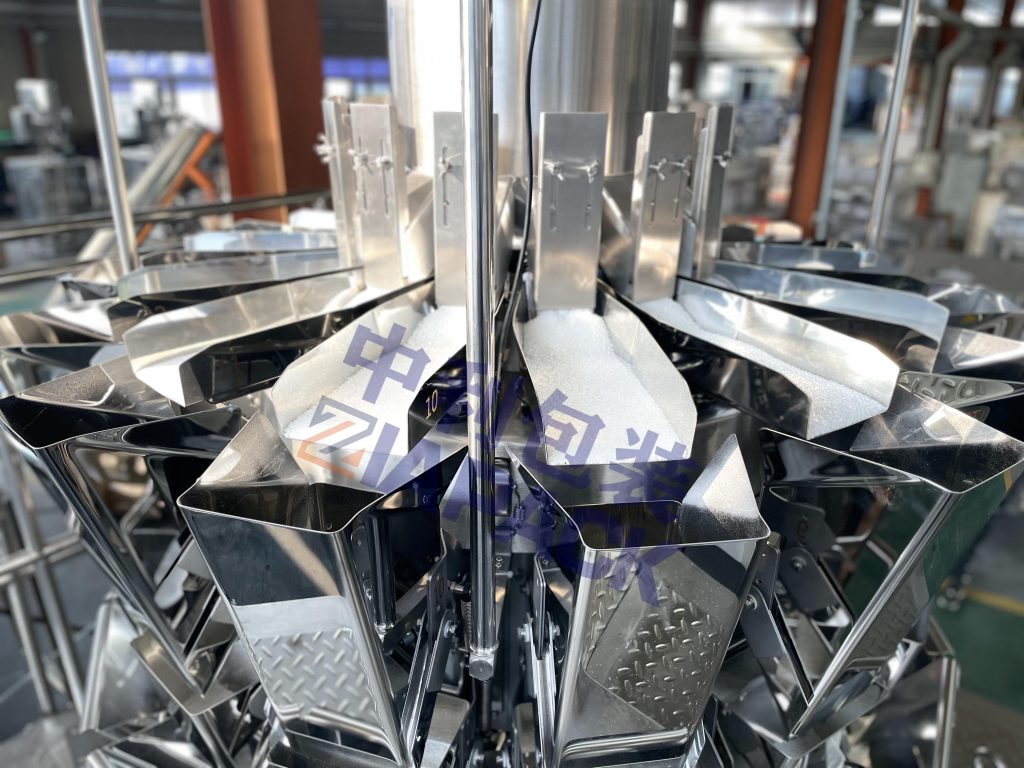

ZL14-2.5L Leak-proof multi-head weighing machine for sugar
Cais
leak proof Multihead Weigher Machine is suitable for weighing small granules such as rice, sugar, fine tea, detergent powder, etc.
Nodweddion
1.Special load cell with high precision and high standard.
2.Program recovery function can reduce operation failures and support multi-segment weight calibration.
3.No products auto pause function can improve weighing stability.
4.Linear amplitude can be adjusted independently.
5.Many languages available for global markets.
6.100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation.
Mechanical character
1.Multi-mouth feeder can dispense products into each linear feeder pan effectively.
2.Specially designed U-shaped linear feeder pans can avoid leaking problem.
3.Mold making process and uniform design standards contribute to better interchangeability for spare parts.
4.Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.
5.Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy.
