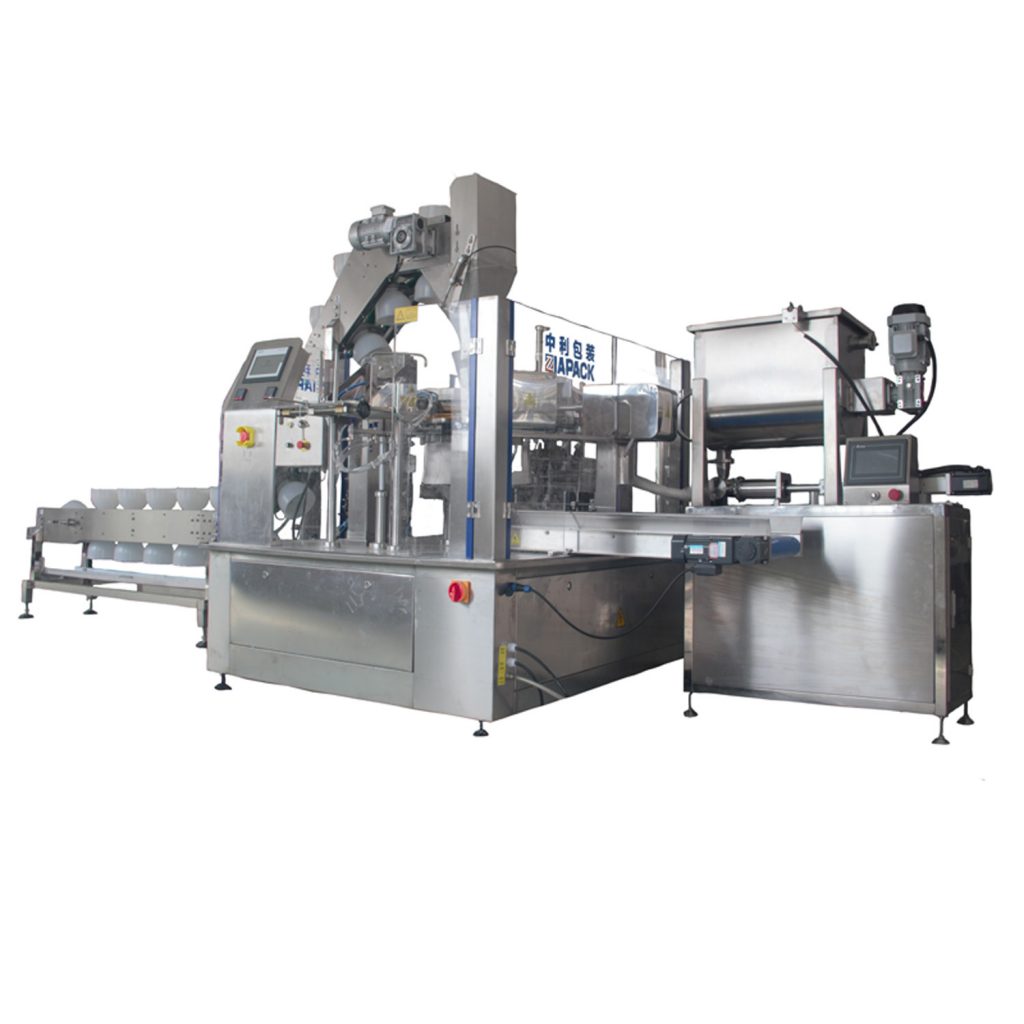

ZL8-230 Automatic rotary packaging machine for pre-made doy bag
Disgrifiad o'r cynnyrch

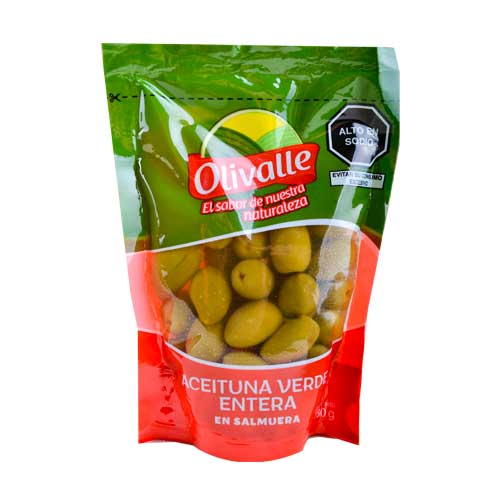

This machine is design for filling liquid product mixed with solid product like ，pre-cooking food like pickles with soup，pickled olives ，pickled cucumbers and so on .With bowl elevator for feeding solid product in to pre-made bag and then piston pump filling sauce .
Nodweddion
1、Easy to operate，adopt advanced PLC from Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2、Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3、Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4 、 Dyfais diogelwch: Stopio peiriant ar bwysedd aer annormal, larwm datgysylltu gwresogydd.
5、The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
6 、 Gall gyd-fynd â'r drws diogelwch gwydr. Ar yr un pryd, gallai atal llwch.
7 、 Defnyddiwch y dwyn plastig, nid oes angen ei roi ar olew, llai o lygredd.
8 、 Defnyddiwch dim pwmp gwactod olew, osgoi llygru'r amgylchedd yn y cynhyrchiad.
9、The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
10、Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
11 、 Gyda gwahanol borthwyr wedi'u newid i bacio solet, hylif, hylif trwchus, powdr ac yn y blaen
12、The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Manylebau
| Model | ZL8-230 |
| Safle gweithio | sefyllfa wyth-waith |
| Deunydd cwdyn | Laminated film |
| Patrwm pouch | Doy packer with zipper ,pillow bag，four side sealing bag |
| Pouch maint | W:100-200mm L:150-300mm |
| Cyflymder | 10-35pouches/min（The speed depends on the product status and filling weight）） |
| Pwysau | 1400KGS |
| foltedd | 380V 3phase 50HZ/60HZ |
| Cyfanswm pŵer | 2KW |
| Cywasgu aer | 0.4m3/min(supply by user) |
Ein Mantais
- Rhyngwyneb sgrîn gyffwrdd
- Cefnogaeth iaith
- IP65 dylunio gwrth-ddŵr a llosgi
- Swyddogaeth ddiagnostig rhaglen a mecanwaith
- Detholiad awtomatig a system hopper casglu un-plus dau
- Synhwyrydd pwyso diagital manwl gywir
- Ongl agoriadol addasu modur cameryn i gael manwl gywirdeb
- Mae modd defnyddio modd cyflymder uchel a chywirdeb uchel
- Gallai bwced cyfunol adael yn orfodol er mwyn osgoi cynhyrchion jam i fyny
- Gallai llawlyfr gweithredu cyfeillgar i ddefnyddwyr ddarllen ar y sgrîn gyffwrdd
- Swyddogaeth ystadegau pwerus, gan gofnodi pob data cynhyrchu swp
- Swyddogaeth cyfrif darnau
- Adeiladu dur di-staen ynghlwm
Manylebau Technegol
| Model | ZVF-540Q | ZVF-730Q | |
| Bag arddull | Bag Sêl Quad, gobennydd a bag gusset | ||
| Hyd bag | Hyd at 340mm (13.4 '') | Hyd at 420mm (16.5 '') | |
| Lled y bag | 80 i 200mm (3.1 'i 7.9' ') | 100 i 240mm (4 'i 9.4' ') | |
| Bag Dyfnder ochr | 50 i 100mm (2 'i 3.9' ') | 50 i 120mm (2 'i 4.7' ') | |
| Lled Edge Seal | 5 i 10mm (0.2 'i 0.4' ') | ||
| Lled ffilm | ≤540mm (21.3 '') | ≤730mm (28.7 '') | |
| foltedd | AC220V / 50Hz, 1phase neu fesul manyleb cwsmer | ||
| Defnyddio Pŵer | 3KW | 4KW | |
| Gofyniad Aer Cywasgedig | 0.6 MPa, 0.36 M3 / min (87 Psi, 12.7cfm) | ||
Nodyn Atgoffa
Rhowch wybod i ni am y manylion pacio canlynol pan fyddwch yn eu cynnig, fel y gallwn wirio a yw'r model hwn yn addas ar gyfer eich achos. Rhowch wybod ymlaen llaw.
1. Manylion y cynnyrch
2. Lled bag, hyd bag
3. Siâp bag
4. Deunydd ffilm pacio
5. Ffrâm peiriant
