Cyflwyniad:
This machine including one set ZL520 vertical bag making packing and sealing machine .one set ZL2000 Auger measuring machine ,One set ZL100V2 double vacuum chamber packing machine ,and one set output conveyor .The machine have the function of bag forming ,product filling ,bag cleaning and vacuuming .Can choose thermal transfer coding machine which are more popular for make date coding on Coffee brick vacuum bag .This machine are widely use for packing food pharmacy chemical and other product in powder or small granule. Like coffee powder ,yeast powder wheat flour and so on .The whole machine adopting inside pumping to vacuum product .The vacuum degree is very high and packing speed is very high can be reach 8bag/min .The finished product is very nice and have a long shelf life.
Cais:
Paramedrau technegol:
Model :ZL100V2 ( Double vacuum chamber )
Packing speed :200-250gram 25-30bag/min
500gram 22-25bag/min
Dimensiwn peiriant: 6800 * 3800 * 4080mm
Power :18kw(Suggest client use air storage tank with volume is 1.5cbm)

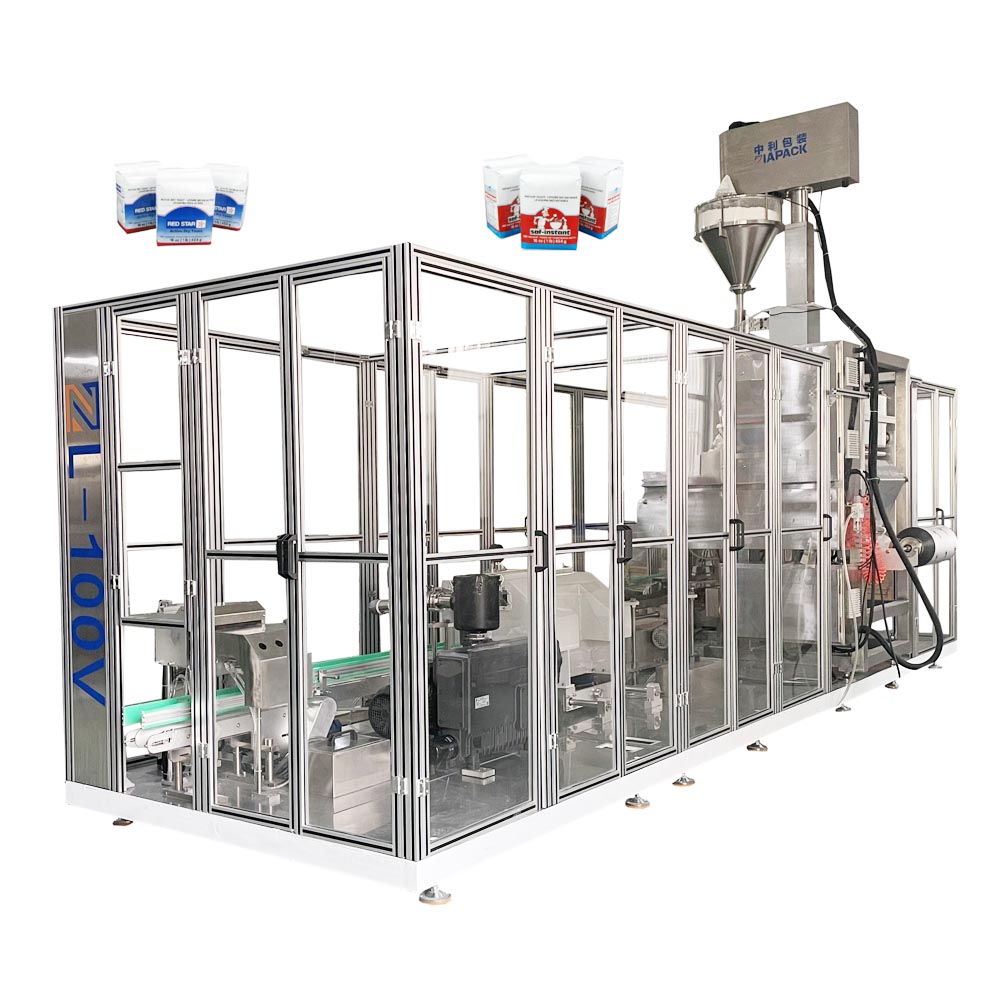

ZL100V2 LINEAR TYPE DOUBLE VACUUM CHAMBER PEIRIANT PACIO
Mae'r peiriant hwn yn ddyluniad arbennig ar gyfer cynnyrch pacio dan wactod mewn gradd gwactod uchel .Y peiriant cyfan yn cael ei reoli gan Siemens PLC a sgrîn gyffwrdd .Mabwysiadu Cydrannau Niwmatig brand enwog. Cychwyn y broses gwactod yn Siambr gwactod gall gyrraedd y radd gwactod uchel.
Paramedr technegol:

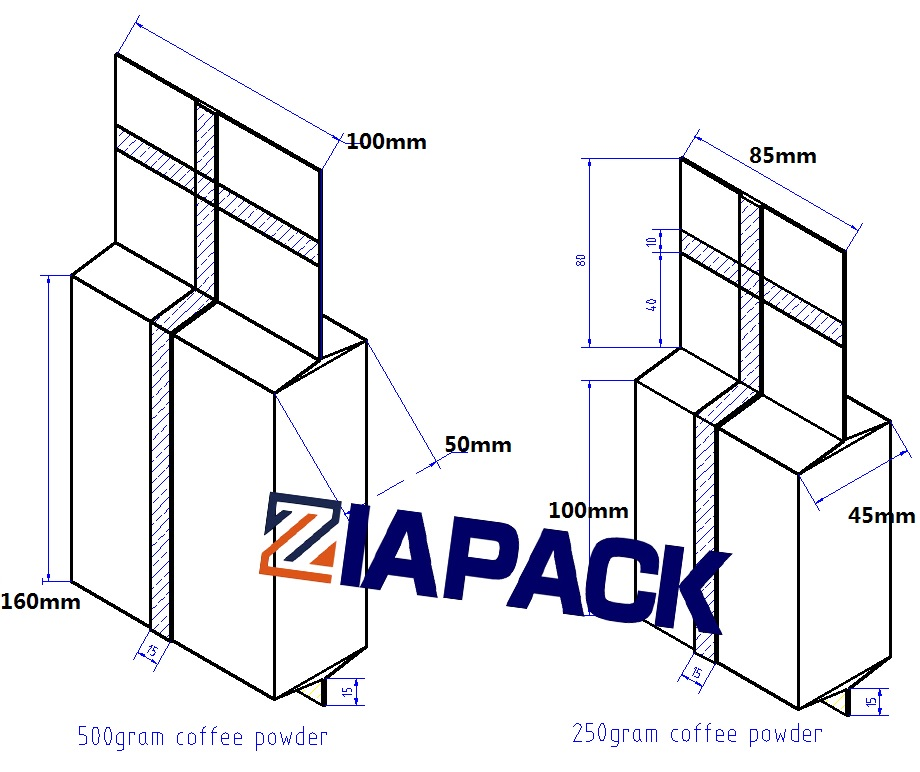

Bag length: 100-260mm
Bag width：60-250mm(side width + front width )
Math o fag: bag gwactod math brics
Defnydd o ffynhonnell aer: 0.6MPa 0.45m3/munud
Power：8KW 380V±10% 50Hz
Pwysau peiriant: 1200kg
Working progress :
Get gusseted bag from VFFS packaging machine (bag mouth opening )---forming &opening the bag mouth ---Filling the material from auger filler---Cleaning the bag mouth and vibrating ----Press module to pressing the bag material ---Folding the gusseted with vibrating ---Folding the top to make the top flat ----send to vacuum chamber ---Pushing into vacuum chamber ----Vacuuming and heating sealing --- Output from vacuum chamber ---Send to cutting the bag top area .---Finished bag output
